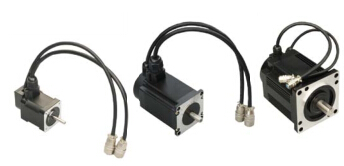

Small Size，High Torque，High Speed，Low Resonance，High Precision
|
Step Angle |
1.8° |
|
|
Encoder |
1000 Increasement（Optional） |
|
|
Tolerance of Resistance |
±10% |
|
|
Tolerance of Inductance |
±20% |
|
|
Termperature Rise |
85℃ Max(2-Phase Powered) |
|
|
Operate Tem. Range |
-20℃ ~+50℃ |
|
|
Insulation Resistance |
100MΩMin，500VDC |
|
|
Dielectric Strength |
500VAC，1 Min. |
|
|
Radial Play |
0.02Max.（450g-Load） |
|
|
End Play |
0.08Max.（450g-Load） |
Electrical Specifications
|
Size |
Model No. |
Step Angle |
Current |
Resistance |
HoldTorque |
Length |
Shaft OD |
|
deg |
A/Phase |
Ω/Phase |
N.m |
mm |
mm |
||
|
42mm |
HF420045S-01S |
1.8 |
2.0 |
0.9 |
0.45 |
70 |
5 |
|
Size |
Model No. |
Step Angle |
Current |
Resistance |
HoldTorque |
Length |
Shaft OD |
|
deg |
A/Phase |
Ω/Phase |
N.m |
mm |
mm |
||
|
57mm |
HF570144S-01S |
1.8 |
2.8 |
0.85 |
1.44 |
87 |
8 |
|
HF570144S-01S |
4.2 |
0.60 |
2.40 |
109 |
8 |
|
Size |
Model No. |
Step Angle |
Current |
Resistance |
HoldTorque |
Length |
Shaft Dia |
|
deg |
A/Phase |
Ω/Phase |
N.m |
mm |
mm |
||
|
86mm |
HF860360S-01S |
1.8 |
6.0 | 0.33 | 3.6 | 84 | 14 |
|
HF860360S-01S |
5.5 |
0.46 |
4.6 |
96.4 |
14 |
||
|
HF860800S-01S |
6 |
0.44 |
8 |
136 |
14 |
