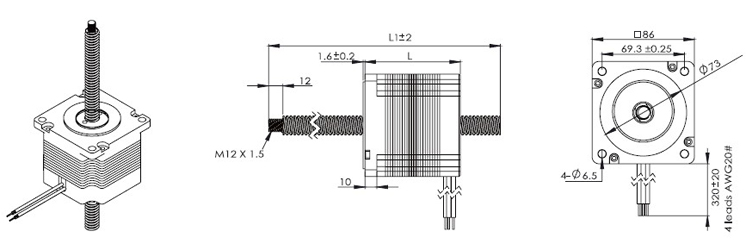

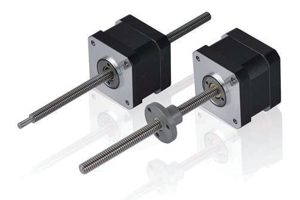

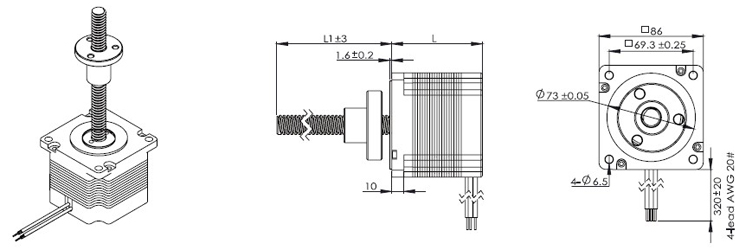

Size 86mm Seires 2-Phase Hybrid Linear Step Motor

电机规格参数
Model	Current/Phase	Resistance/Phase	Hold Torque	Length
86E11080□-X	3.0A	1.6Ω+/-10%	4.5N.m	80mm
86E11098□-X	6.0A	0.3Ω+/-10%	6.3N.m	98mm
86E11118□-X	6.0A	0.5Ω+/-10%	8.5N.m	118mm
86E11124□-X	5.6A	0.5Ω+/-10%	10N.m	124mm

Lead Screw Optional Specification
Lead Screw Code	OD of Lead Screw (mm)	Length of Lead Screw (mm)	Length of Step (mm)
K	15.875	2.54	0.127
L		3.175	0.0159
R		5.08	0.0254
S		6.35	0.0318
Y		12.7	0.0635
Z		25.4	0.127

Note：The Step Length above is tested base on Lead Screw and 2-Phase Motor with Step Angle 1.8°。
E external driver lead screw don't apply to the above 。For more information please contact with Sales of HDB Motors。
