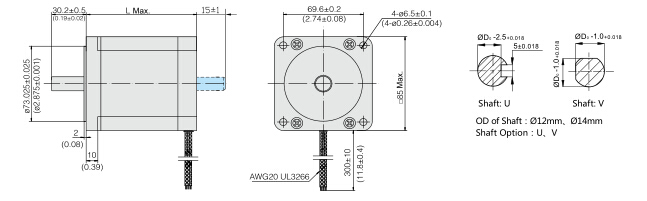

Size Ø86mm Series 3-Phase Hybrid Step Motor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Specifications | 1.2° |
| Step Angle Error | 1.2°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Resistance | ±20% |
| Termperature Rise | 85℃ Max(Rated Current) |
| Operate Tem. Range | -20℃~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 220N(20mm From Flange) |
| Torque of Shaft(Max.) | 80N |
|
Model
|
Rated
Voltage |
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rated
Torque |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
N.m
|
kg
|
mm
|
|||
|
HD860230S01
|
DC:60V
|
5.8
|
0.55
|
0.65
|
2.30
|
2
|
1.65
|
69
|
Low,Mid
|
|
HD860452S01
|
0.90
|
3.2
|
4.52
|
4
|
2.70
|
98
|
Low,Mid
|
||
|
HD860678S01
|
2.75
|
13.7
|
6.78
|
6
|
3.80
|
128
|
Low,Mid
|
||
|
HD860230S02
|
AC:
80-220V |
1.8
|
4.25
|
12.3
|
2.3
|
2
|
1.65
|
69
|
Mid,High
|
|
HD860452S02
|
2.0
|
5.4
|
23
|
4.52
|
4
|
2.70
|
98
|
Mid,High
|
|
|
HD860678S02
|
2.5
|
9.0
|
41
|
6.78
|
6
|
3.80
|
128
|
Mid,High
|
|
|
HD860870S01
|
3.5
|
1.9
|
11.5
|
8.70
|
8
|
4.40
|
145
|
Mid,High
|
