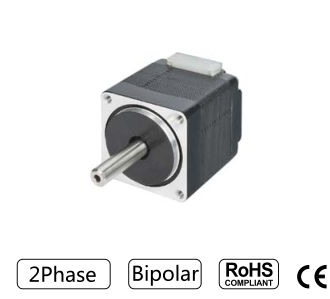

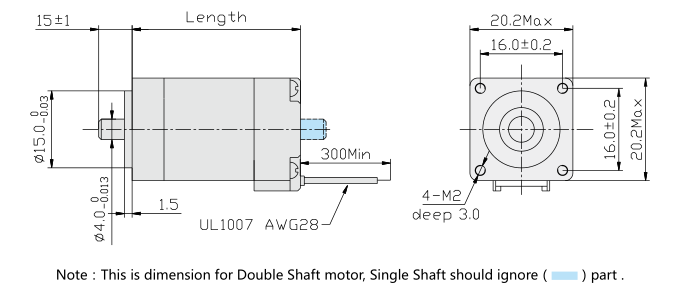

Size Ø20mm Series 2-Phase Hybrid Step Motor
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8° ±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max(2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 20N(Standard 20mm ) |
| Torque of Shaft(Max.) | 2N |
|
Model
|
Rated
Voltage |
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
|
V/Phase
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
mN.m
|
g.cm2
|
kg
|
mm
|
|
|
HF200002S01
|
3.90
|
0.6
|
6.5
|
1.7
|
20
|
2.0
|
0.050
|
30
|
|
HF200002S02
|
3.90
|
0.6
|
6.5
|
1.7
|
20
|
2.0
|
0.060
|
33
|
|
HF200003S01
|
4.32
|
0.8
|
5.4
|
1.5
|
30
|
3.6
|
0.080
|
42
|
|
HF200003S02
|
5.60
|
0.4
|
16
|
7.0
|
30
|
4.0
|
0.085
|
46.5
|
