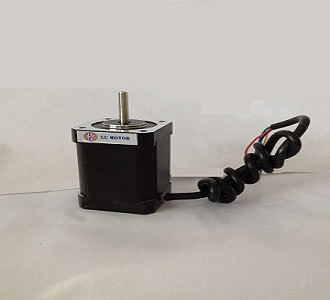

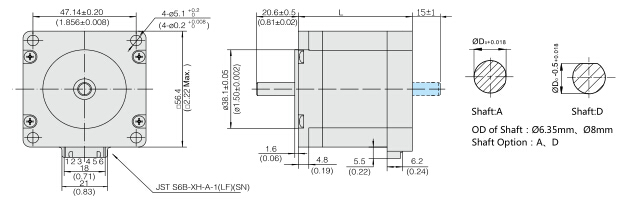

Size Ø57mm Series 2-Phase Hybrid Step Motor
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8° ±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max( 2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 75N(20mm From Flange) |
| Torque of Shaft(Max.) | 15N |
|
Model
|
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HF570080S01
|
2.0
|
1.10
|
3.4
|
0.87
|
145
|
0.51
|
42
|
Low
|
|
HF570080S02
|
2.8
|
0.65
|
2.0
|
0.88
|
Mid
|
|||
|
HF570080S03
|
4.0
|
0.31
|
0.9
|
0.87
|
High
|
|||
|
HF570140S01
|
2.0
|
1.40
|
5.1
|
1.41
|
245
|
0.71
|
55
|
Low
|
|
HF570140S02
|
2.8
|
0.85
|
3.0
|
1.44
|
Mid
|
|||
|
HF570140S03
|
4.0
|
0.41
|
1.3
|
1.41
|
High
|
|||
|
HF570140S04
|
4.4
|
0.40
|
1.3
|
1.41
|
330
|
0.85
|
65
|
High
|
|
HF570240S01
|
2.0
|
2.10
|
8.4
|
2.40
|
470
|
1.11
|
78
|
Low
|
|
HF570240S02
|
3.0
|
1.25
|
4.9
|
2.44
|
Mid
|
|||
|
HF570240S03
|
4.2
|
0.60
|
2.2
|
2.40
|
High
|
|||
| HF570270S01 |
4.2
|
0.80
|
3.0
|
2.70
|
680
|
1.25
|
102
|
Mid,Low |
