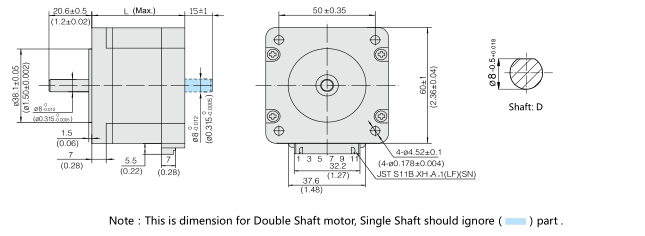

Size Ø60mm Series 2-Phase Hybrid Step Motor
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item
|
Specifications
|
| Step Angle | 1.8° |
| Step Angle Error | 1.8°±5% |
| Tolerance of Resistance | ±10% |
| Tolerance of Inductance | ±20% |
| Termperature Rise | 85℃ Max( 2-Phase Power) |
| Operate Tem. Range | -20℃ ~+50℃ |
| Insulation Resistance | 100MΩMin，500VDC |
| Dielectric Strength | 500VAC，1 min |
| Radial Play | 0.02Max.（450g-Load） |
| End Play | 0.08Max.（450g-Load） |
| Torque of Radial(Max.) | 75N(20mm From Flange) |
| Torque of Shaft(Max.) | 15N |
|
Model
|
Rated
Current |
Winding
Resistance |
Winding
Inductance |
Holding
Torque |
Rotor
Inertial |
Mass
|
Length
|
Speed
Match |
|
A/Phase
|
Ω/Phase
|
mH/Phase
|
N.m
|
g.cm2
|
kg
|
mm
|
||
|
HF600090SXX
|
4.2A
|
0.35
|
0.8
|
0.92
|
280
|
0.62
|
45
|
Mid,High
|
|
HF600140SXX
|
0.43
|
1.38
|
1.40
|
400
|
0.88
|
54
|
Mid,High
|
|
|
HF600200SXX
|
0.55
|
1.94
|
2.00
|
590
|
1.02
|
68
|
Mid,High
|
|
|
HF600280SXX
|
0.65
|
2.40
|
2.80
|
920
|
1.40
|
87
|
Mid,High
|
|
|
HF600330SXX
|
0.80
|
3.00
|
3.30
|
1400
|
1.70
|
105
|
Mid,Low
|
