| Supply Voltage | DC18V-50V |
| Out Current | 10.0A/phase |
| Control Mode | Velocity Control |
| Feedback | Halls |
| Type of Hall | 60°,300°,120°,240° |
| Setup Method | Software |
| Allowed Speed | 0—6000RPM |
| Status LEDs | 1 red, 1 green |

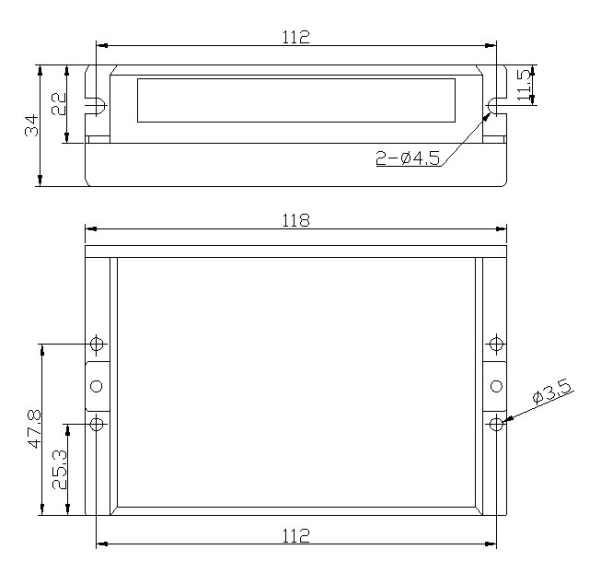

| Dimensions | 120*76*33 mm |
| Weight | 250g |
| Protection Function | Over voltage, under voltage, over current, short circuit (phase to |
| phase, phase to grand), bad Hall signal. | |
| Under Voltage Protection | 18V |
| Over Voltage Protection | 55V |
| Ambient Temperature | 0 to 40°C |
| Storage Temperature | 0 to 40°C |
| Humidity | 90% non-condensing |
Mode 1
You could set 8 speeds in this mode. Also you could set the accelerate time in different speed.
|
X1--GND |
X2--GND |
X3--GND |
SPEED 0~7 |
Speed |
|
ON |
ON |
ON |
SPEED 0 |
User SET |
|
ON |
ON |
OFF |
SPEED 1 |
User SET |
|
ON |
OFF |
ON |
SPEED 2 |
User SET |
|
ON |
OFF |
OFF |
SPEED 3 |
User SET |
|
OFF |
ON |
OFF |
SPEED 4 |
User SET |
|
OFF |
ON |
OFF |
SPEED 5 |
User SET |
|
OFF |
OFF |
ON |
SPEED 6 |
User SET |
|
OFF |
OFF |
OFF |
SPEED 7 |
User SET |
Mode 2
You could set 4 speeds in this mode .
When two of X1，X2，X3 or all of X1,X2,X3 are “on”，Prority:X1>X2>X3,
For Example: X1，X2 are also on，it is Speed 0。
X2，X3 are also on，it is Speed 1。
X1，X2，X3 are also off，it speed 3。
When it change speed, the accelerate time is what you set.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
X1--GND |
X2--GND |
X3--GND |
Speed |
Value |
|
ON |
X |
X |
0 |
customize |
|
OFF |
ON |
X |
1 |
|
ower/Alarm LED
Two Led on the drive. The green one means power: the drive works so the green Led is on.
The red one means Alarm：
|
Red LED Status |
|
|
Solid Red |
Motor Disabled |
|
Every Second, 1 Red |
Short Circuits |
|
Every Second, 2 Red |
Hall Bad |
|
Every Second, 2 Red |
Hall phase angle Error |
|
Every Second, 2 Red |
Over Current |
|
Every Second, 2 Red |
Busbar Under-voltage |
|
Every Second, 2 Red |
Busbar Over-voltage |
