丝杆直径(mm)
|
螺距(mm)
|
导程(mm)
|
头数(mm)
|
步长(mm)
|
|
5.56
|
1.22
|
2.44
|
2
|
0.0122
|
|
6
|
1.5
|
1.5
|
1
|
0.0075
|
|
6.35
|
1.22
|
4.88
|
4
|
0.0244
|
|
6.5
|
1.5
|
3
|
2
|
0.015
|
|
8
|
2
|
2002/4/8
|
1.0/2.0/4.0
|
0.01/0.02/0.04
|
|
9.525
|
2.54
|
5.08/10.16
|
2.0/4.0
|
0.0254/0.0508
|
| 型号 |
机身长
|
相电压
|
相电流
|
相电阻
|
相电感
|
静力矩
|
引线数
|
转动惯量
|
重量
|
| Series |
Motor Length
|
Rate Voltage
|
Rated Current
|
Phase Resistance
|
Phase Inductance
|
Holding Torque
|
Lead Wire
|
Rotor Inertia
|
Motor Weight
|
| Model |
(mm)
|
(V)
|
(A)
|
(Ω)
|
(mH)
|
(Kg.cm)
|
(NO.)
|
(g.cm²)
|
(g)
|
| 42HB34F04AB |
34
|
13.2
|
0.4
|
33
|
45
|
2.4
|
4
|
34
|
200
|
| 42HB34F08AB |
4.96
|
0.8
|
6.2
|
10
|
2.4
|
4
|
|||
| 42HB34F105AB |
2.7
|
1.5
|
1.8
|
2.4
|
2.4
|
4
|
|||
| 42HB40F102AB |
40
|
6.5
|
1.2
|
6
|
13
|
3
|
4
|
54
|
220
|
| 42HB40F107AB |
2.4
|
1.7
|
1.5
|
2.5
|
3.5
|
4
|
|||
| 42HB40F05AB |
4.1
|
0.5
|
8
|
15
|
2.6
|
4
|
|||
| 42HB44F05A |
44
|
8.9
|
0.5
|
18
|
23
|
2.9
|
4
|
50
|
250
|
| 42HB44F1AB |
8
|
1
|
8
|
16
|
3.5
|
4
|
|||
| 42HB48F04AB |
48
|
8
|
0.4
|
20
|
40
|
4
|
4
|
68
|
280
|
| 42HB48F08AB |
7.2
|
0.8
|
9
|
15
|
4.5
|
4
|
|||
| 42HB48F105AB |
4.2
|
1.5
|
2.8
|
4.8
|
4
|
4
|
|||
| 42HB62F2AB |
62
|
3.2
|
2
|
1.6
|
3
|
8
|
4
|
68
|
320
|

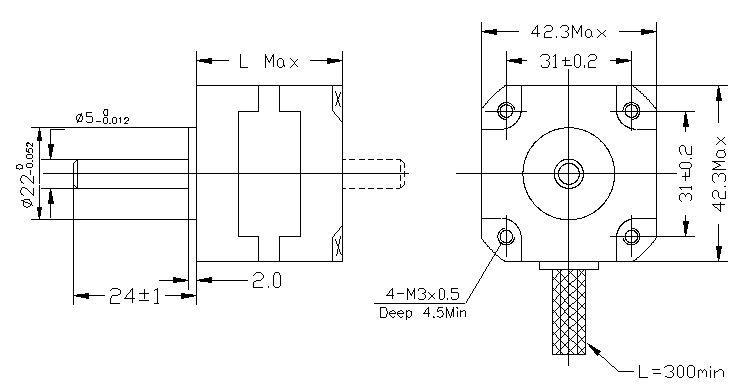

外形尺寸
